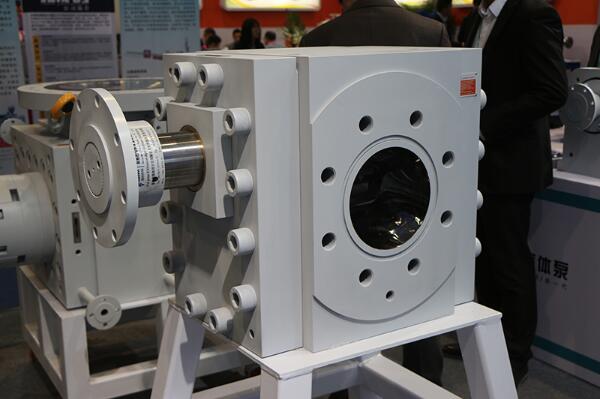

The BOPP film melt gear pump provided by Zhengzhou Batte is aimed at the high-performance film biaxial stretch film production technology, closely following the needs of customers, combining its own technology and expertise, not only can provide customers with stable and reliable melt gear pump technical solutions, but also our after-sales team can provide customers with 7X24 hours of after-sales service covering all regions of the country. The specific specifications and parameters of gear pump for BOPP film are as follows:
ZB - 180/180-3200CC technical parameters
Displacement: 3200CM3REV
Output range: 2000KG/H-7000KG/H (the output range fluctuates with the change of customer's material formula)
Wheel base: 180MM, tooth width: 180MM
Equipment weight: about 1200KG
Pump body: high temperature alloy steel (coating can be added according to the actual process requirements of customers)
Gear: imported tool steel and nitrided steel (various materials can be provided according to the actual process requirements of customers)
Shaft sleeve: tool steel, copper aluminum alloy (various materials can be provided according to the actual process requirements of customers)
Heating method: electric heating rod
Sealing: double head spiral seal (cold water ring can be provided as an auxiliary seal according to the actual process requirements of the customer)
ZB - 180/180-3200CC operating parameters
Inlet pressure: 0.1-10MPA
Operating temperature: ≤ 300 ° C
Outlet pressure: 10-30MPA
Operating speed: ≤ 70RPM
Maximum differential pressure: 20MPA
Viscosity range: ≤ 30000PA. S
