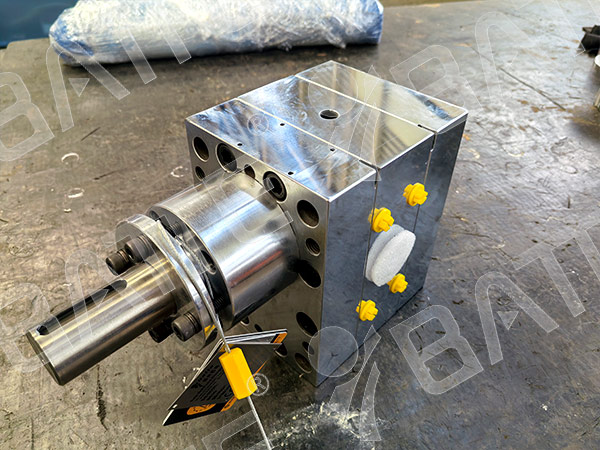

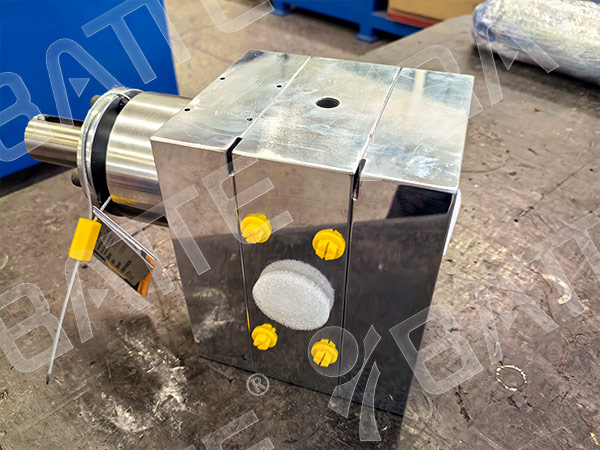

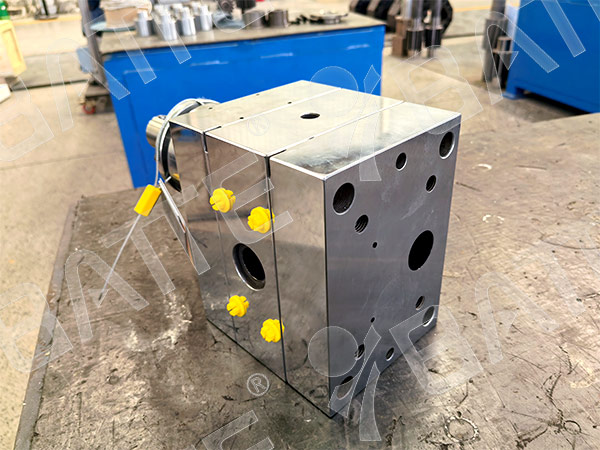

The custom 50CC melt pump is a professional positive displacement metering component specially optimized for glue and curing agent extrusion production lines. Different from standard industrial melt pumps with left-in and right-out horizontal flow, this 50CC model adopts a unique bottom-in and side-out structural design, perfectly adapting to the special pipeline layout and feeding requirements of epoxy curing agent extrusion equipment, solving the installation and material conveying bottlenecks of traditional pumps in special production scenarios.
This precision melt pump is exclusively tailored for two-component epoxy glue processing, supporting stable conveying and quantitative metering of amine-type curing agents, the core hardening materials for epoxy products. Amine-type curing agents feature moderate viscosity and strict fluidity stability requirements during extrusion. The 50CC fixed displacement design delivers constant volumetric output, effectively avoiding flow fluctuation, material stratification and uneven curing caused by unstable feeding, ensuring the uniform mixing and molding quality of two-component epoxy glue.
Made of high-strength alloy steel with wear-resistant and corrosion-resistant treatment, the pump core and shell adapt to the chemical characteristics of amine curing agents and high-viscosity epoxy melts. It maintains stable operation under continuous high-pressure and constant-temperature extrusion conditions, with excellent pressure resistance and aging resistance. The improved bottom-in and side-out structure optimizes material feeding efficiency, reduces residual glue and conveying dead angles, and greatly lowers material waste and equipment cleaning frequency compared with conventional horizontal inlet and outlet pumps.
Widely applied in epoxy adhesive production, curing agent finishing and glue extrusion molding industries, the 50CC custom melt pump features compact structure, easy installation and low maintenance cost. Its accurate metering performance and customized structural advantages make it an ideal core accessory for high-precision two-component epoxy glue extrusion lines, effectively improving production efficiency and finished product qualification rate.
