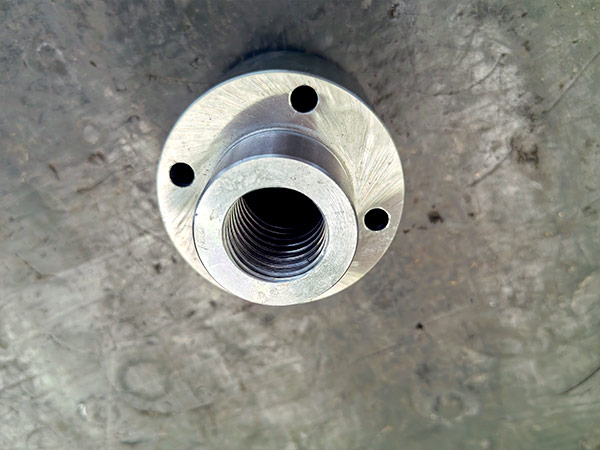

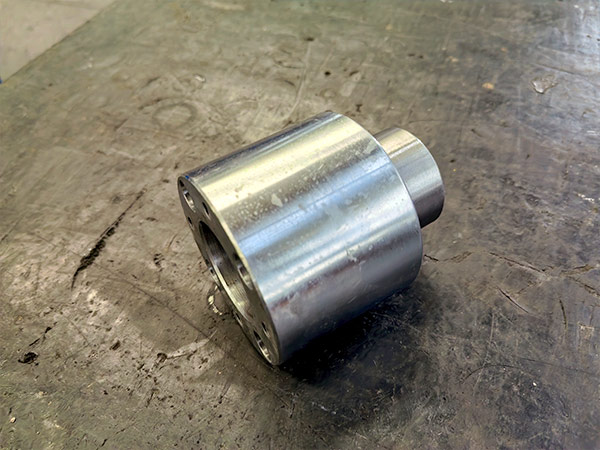

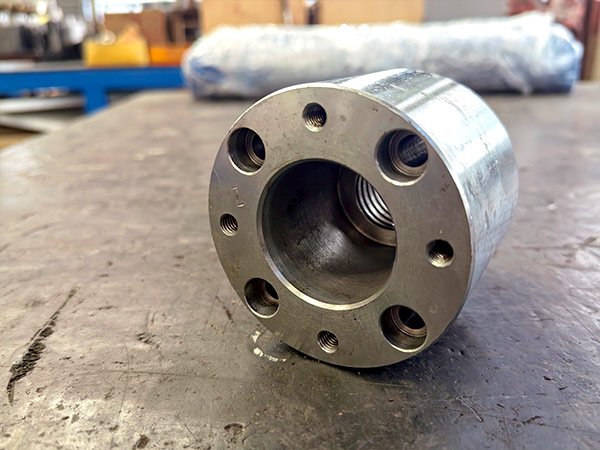

The spiral and packing combined seal is a core wear-resistant spare part specially designed for high-temperature and high-viscosity melt gear pumps in the polymer extrusion industry. Different from single sealing structures, this integrated solution combines dynamic spiral seal and static packing seal, perfectly solving the common leakage problems of traditional shaft seals during pump operation and shutdown, and has become a preferred replacement accessory for plastic extrusion melt pump systems.
The dynamic spiral seal adopts precision reverse spiral groove processing technology. When the melt pump runs at high speed, the rotating spiral groove generates a reverse pumping force, which timely pushes the leaked polymer melt back into the pump cavity. This non-contact dynamic sealing structure effectively reduces friction loss, avoids melt overflow under continuous working conditions, and adapts to high-pressure and high-viscosity media such as PE, PP, PET and nylon melt.
Matching with the spiral structure, the rear packing seal serves as a reliable static sealing barrier. Made of high-temperature resistant graphite, PTFE or aramid packing, it tightly fills the stuffing box gap. When the melt pump stops running, the spiral dynamic sealing function fails, and the packing seal can completely block residual melt leakage and prevent external air and dust from entering the pump body, avoiding material oxidation and equipment failure.
This melt pump seal accessory features excellent temperature resistance up to 350℃, stable performance in long-term continuous production, and low wear and long service life. Its simple assembly structure greatly reduces maintenance difficulty and downtime costs for extrusion production lines. Widely applicable to film blowing, pipe extrusion, granulation and chemical polymer conveying equipment, the spiral + packing combined seal provides durable and cost-effective sealing guarantee for industrial melt pump operation.
